GH4

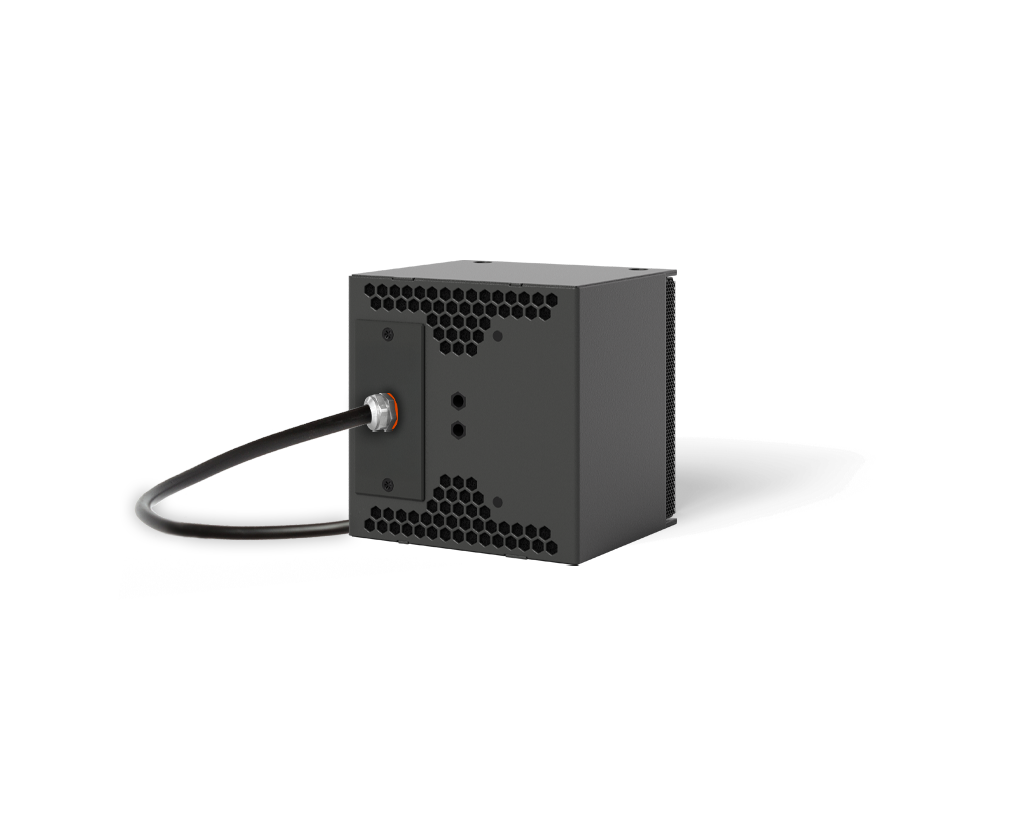

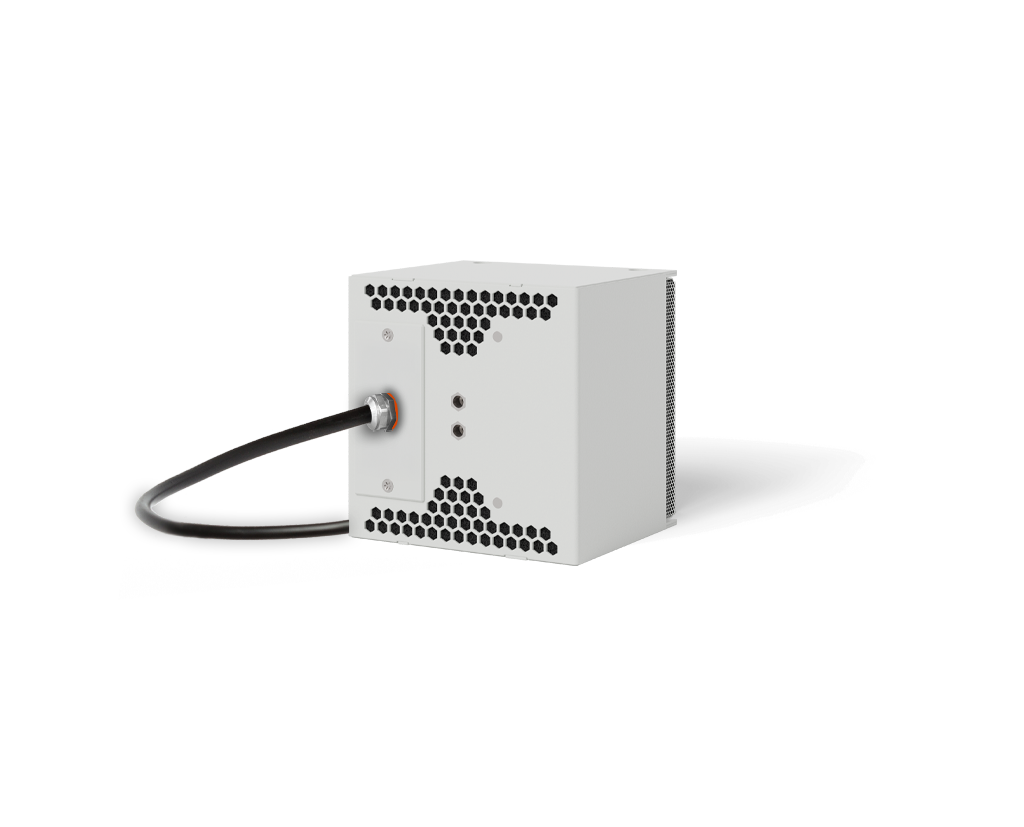

GH4 is a high-performance, ultra-compact point source satellite speaker that delivers exceptional sound quality and coverage in a small and versatile package. Featuring a 4" full-range driver with a dual-coil neodymium magnet and variable impedance (4Ω – 16Ω), GH4 is capable of delivering powerful and clear sound even in challenging acoustic environments.

The unique cabinet design of GH4 ensures a much lower emission on the backside of the speaker, improving sound control and preventing loss of energy. The robust stainless steel enclosure is designed to withstand even the harshest conditions, with an IP64 rating ensuring durability and reliability.

GH4 can be combined with other units to create an array and obtain even higher performance. With its flexibility and compactness, GH4 is a great choice for fixed installation in a wide variety of applications, from live entertainment to hospitality, transportation, broadcast, theaters, houses of worship, and residential settings.

GH4 is available in a passive low impedance version, as well as an active version (GH4A) with a built-in 60W amplifier, providing less power, but even greater flexibility and ease of use.

In addition, GH4 comes with an adjustable wall mount bracket (GF-WALL) for easy installation and positioning.

Whether you're looking for a compact and powerful point source satellite speaker for your live performance, event, or installation, GH4 is a versatile and reliable option that delivers exceptional sound quality and durability in any setting.

)

GH line

Experience exceptional audio performance

Specifications

General

  • Type:

    Passive loudspeaker

  • Transducers:

    4” neodymium magnet full-range driver

  • Frequency Response:

    150 Hz - 20 kHz (-6dB)

  • Max SPL:

    122 dB

  • Rated Power:

    140 W

  • Coverage:

    V. 90° | H. 90°

  • Connectors:

    Phoenix connector (4-pin euroblock)

  • Nominal Impedance:

    4 Ω - 16 Ω selectable

Handling and Finishes

  • Dimensions (W x H x D):

    112x112x94 mm (4.41x4.41x3.70 in)

  • Weight:

    1,2 kg (2,65 lb)

  • Material:

    Stainless steel

  • Colors:

    Black / White

  • IP Rating:

    IP64 (G-IPCAP1 accessory required)

Descargar

GH4 Preset

K-array to KGEAR Amp-to-speaker matching table

rev20240524

KGEAR Amp-to-speaker matching table

rev20240524

USER GUIDE

DWG

v.1

Ease Data

v.1

CE Declaration of Conformity

GH4 Datasheet

v.1
